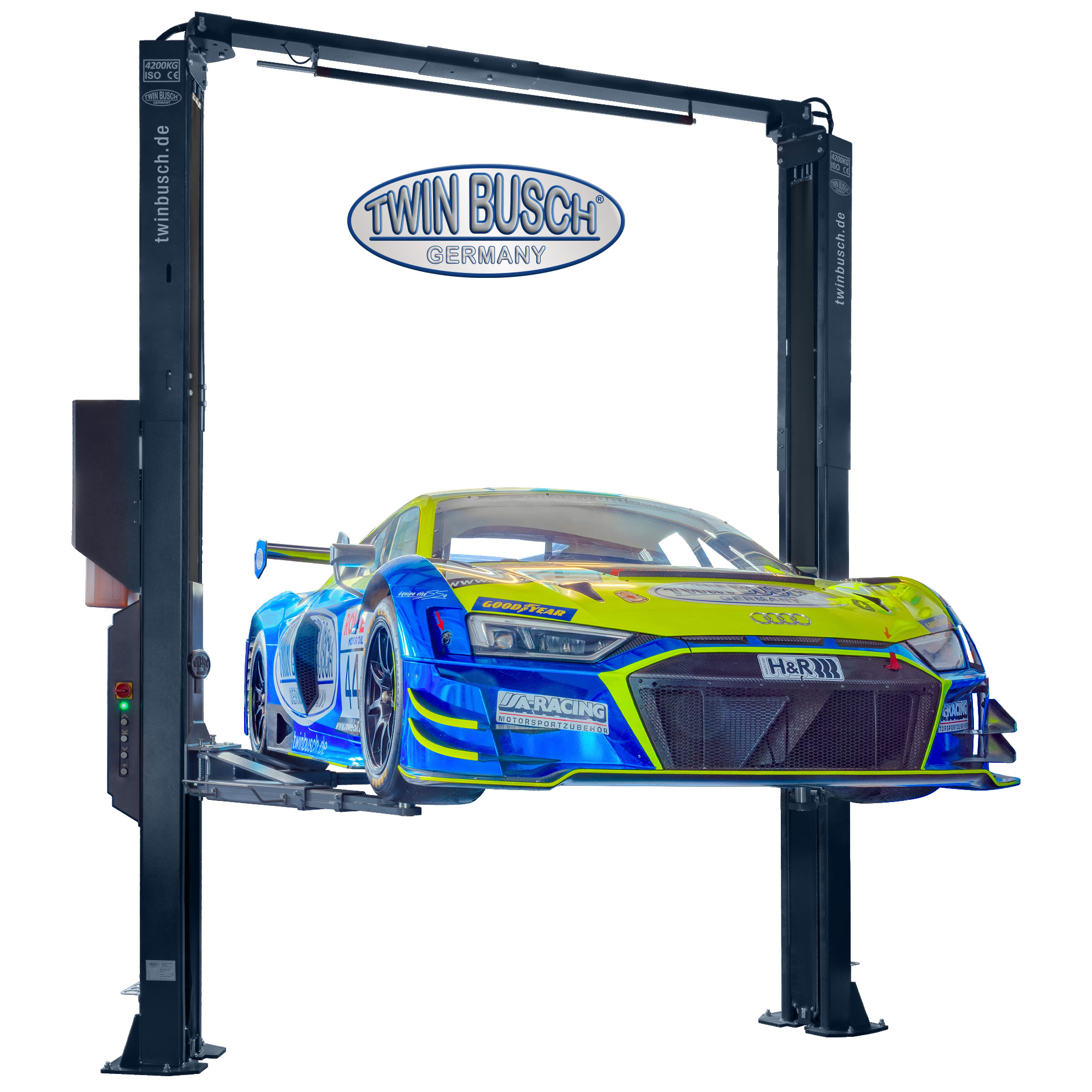

2 Post Lifts TW 242 CE B4.3-G Comfort Grey-Line

The TW 242 CE B4.3-G Comfort-Line two-post lift is ideally suited for professional use in car workshops thanks to its equipment. It has automatic unlocking of the safety catches and two-stage height adjustment of the support rubbers, the rotation height of which is only approx. 85 mm. In addition, the lift has 3-part telescopic support arms for a large lifting surface. Depending on the vehicle type, the columns can be constructed symmetrically or asymmetrically. The asymmetric design provides optimum space between the posts for vehicles with low doors, while the symmetrical design provides more space between the posts for wider vehicles; here you can choose between a passage width of 2872 mm and 3016 mm. For convenient operation, the lift is equipped with an additional control box, so that the TW 242 CE B4.3-G can be operated from both sides. It also has a button to prevent lifting, which allows the lift to be lowered precisely without first automatically lifting. On the outside of each column there is a practical plug adapter holder, which allows for safe storage of two adapters.

The height of the lift can be individually selected depending on the height of the ceiling or vehicle, choosing from 3867 mm to 4300 mm.

Features:

• 1A production technology with CE-Certificate
• Production according to ISO 9001 standards
• Control box on both columns, operation on both columns possible
• Anti-lift button
• 3-part telescopic support arms
• 2 hydraulic cylinders for powerful lifting and lowering
• Automatic locking and unlocking of safety catches
• Automatic locking of support arm
• Insertion height of the claws only approx. 85 mm
• Synchronisation control using wire ropes
• Can be built symmetrically or asymmetrically
• Protective cover in front of posts
• High-quality support columns made of a special rolled profile
• Practical plug-in adapter holders (one on each side of the column) for two plug-in adapters
• With symmetrical installation, the clearance width (between the columns) can be selected between 2872 mm and 3016 mm.
• The lift height can be selected between 3867 mm and 4300 mm depending on the ceiling or vehicle height.
• NEW: Engine cover (Stylish design, dust protection and noise reduction)

Technical Data:

• Lifting capacity: 4,200 kg
• Lift height: 3867 mm or 4300 mm
• Lift height: 1900 mm / 2080 mm
• Feet insertion height 85 mm
• Support arm length / short approx. 615 – 1150 mm
• Support arm length / long approx. 745 – 1345 mm
• Width between columns 2872 mm or 3016 mm
• max. clearance height 3718 mm or 4151 mm
• max. passage width 2545 mm or 2689 mm
• Lifting / lowering time: approx. 35/40 s
• Voltage: (~3) 400 V
• Motor power: 3.5 kW
• Fuse: 16 A
• Weight: 700 kg
